Wire Rod Rolling Mill

High‑Speed Wire Rod Mill Solutions for Construction and Industrial Steel

Wire rod production demands ultra-high rolling speeds, precise temperature control, and stable finishing conditions to ensure uniform microstructure and consistent mechanical properties. As one of the most demanding processes in long product rolling, it requires accurate control of finishing temperature, laying head performance, and controlled cooling to achieve the desired strength, ductility, and surface quality. Even small deviations in finishing temperature or cooling rate can result in strength variation, excessive scale formation, coil instability, or poor coil geometry, affecting downstream processing and end-use performance.

Shanghai Metallurgy Equipment Group (SME) designs and supplies complete turnkey wire rod rolling mill lines, covering the entire process from billet reheating to high-speed rolling, controlled cooling, and coil handling. Our solutions integrate advanced block mills, high-speed laying heads, and efficient cooling systems to ensure stable rolling performance and uniform heat treatment conditions. Engineered with optimized process design and reliable automation control, SME wire rod mills deliver tight dimensional tolerances, consistent coil quality, and dependable metallurgical performance. This enables customers to achieve high productivity, reduced operational variability, and stable long-term operation across a wide range of construction and industrial steel applications.

Wire Rod Rolling Process Flow

Billet Heating → Roughing Mill → Intermediate Rolling → High‑Speed Finishing Block → Controlled Cooling (Stelmor) → Laying Head → Coil Collection and Compaction

Billets are heated to the optimal rolling temperature in a reheating furnace before entering a series of roughing and intermediate stands for progressive reduction. The high‑speed finishing block performs the final dimensional forming at speeds exceeding 100 m/s. The hot rod is then transferred to a controlled cooling conveyor system, where precise air‑flow and temperature control produce the required microstructure before the laying head forms uniform coils for collection and compaction.

Standard Wire Rod Mill Technical Parameters

Mill configurations can be customized to support low‑carbon, high‑carbon, alloy, and welding‑grade wire rod production depending on end‑use requirements.

Main Equipment of a Wire Rod Rolling Mill

A complete Wire Rod Rolling Mill is designed to convert continuously cast billets into high-speed rolled wire rods with precise diameter, uniform microstructure, and excellent coil formation. The coordinated operation of reheating, rolling, controlled cooling, and coiling systems ensures stable production and consistent mechanical properties.

Core equipment includes:

· Billet reheating furnace with automatic charging, billet tracking, and multi-zone temperature control

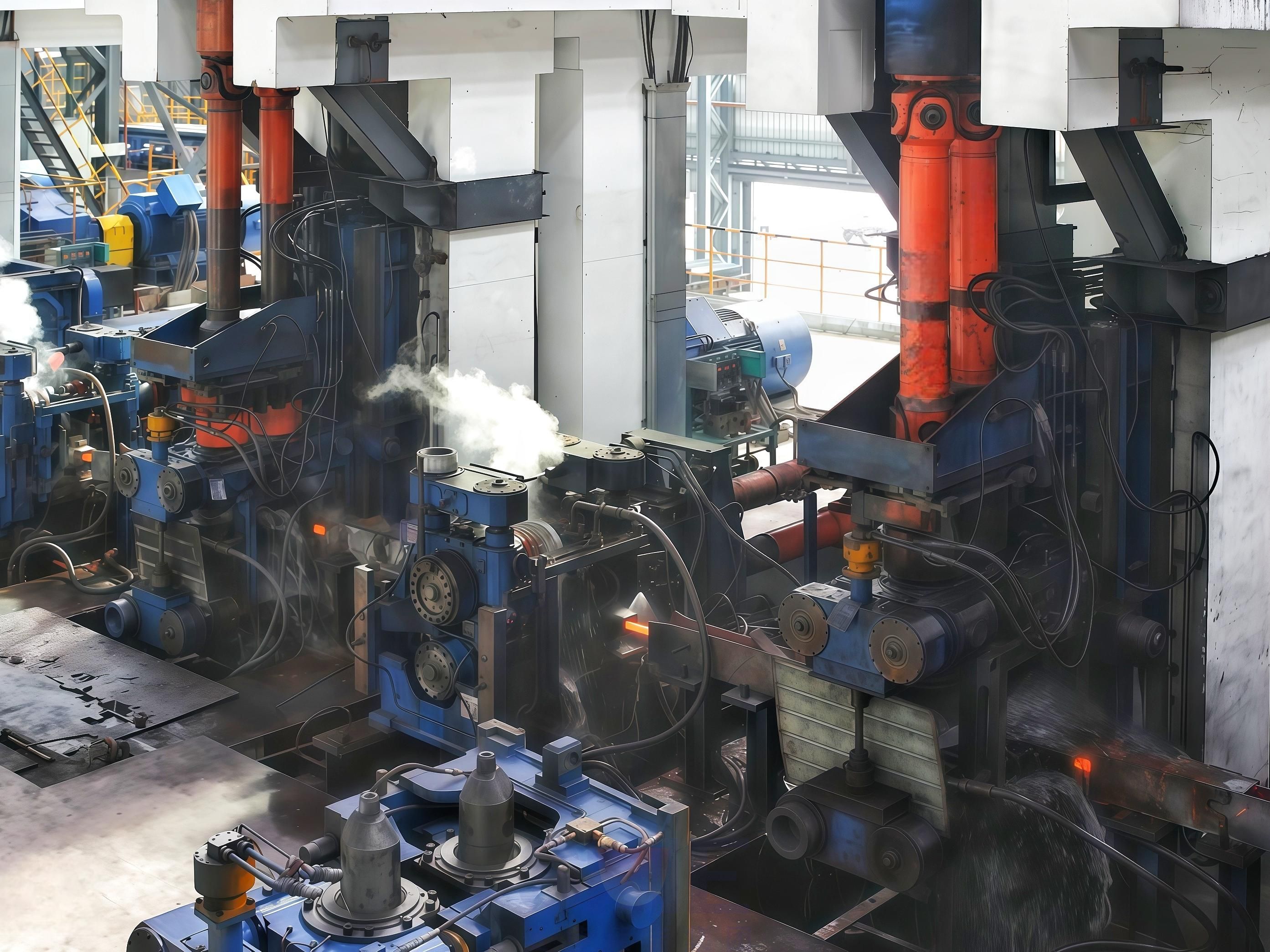

· Roughing and intermediate rolling stands for progressive cross-section reduction and stable material flow

· High-speed finishing block to achieve final wire rod diameter at speeds exceeding 80–120 m/s

· Water box or controlled cooling section for temperature regulation before coil formation

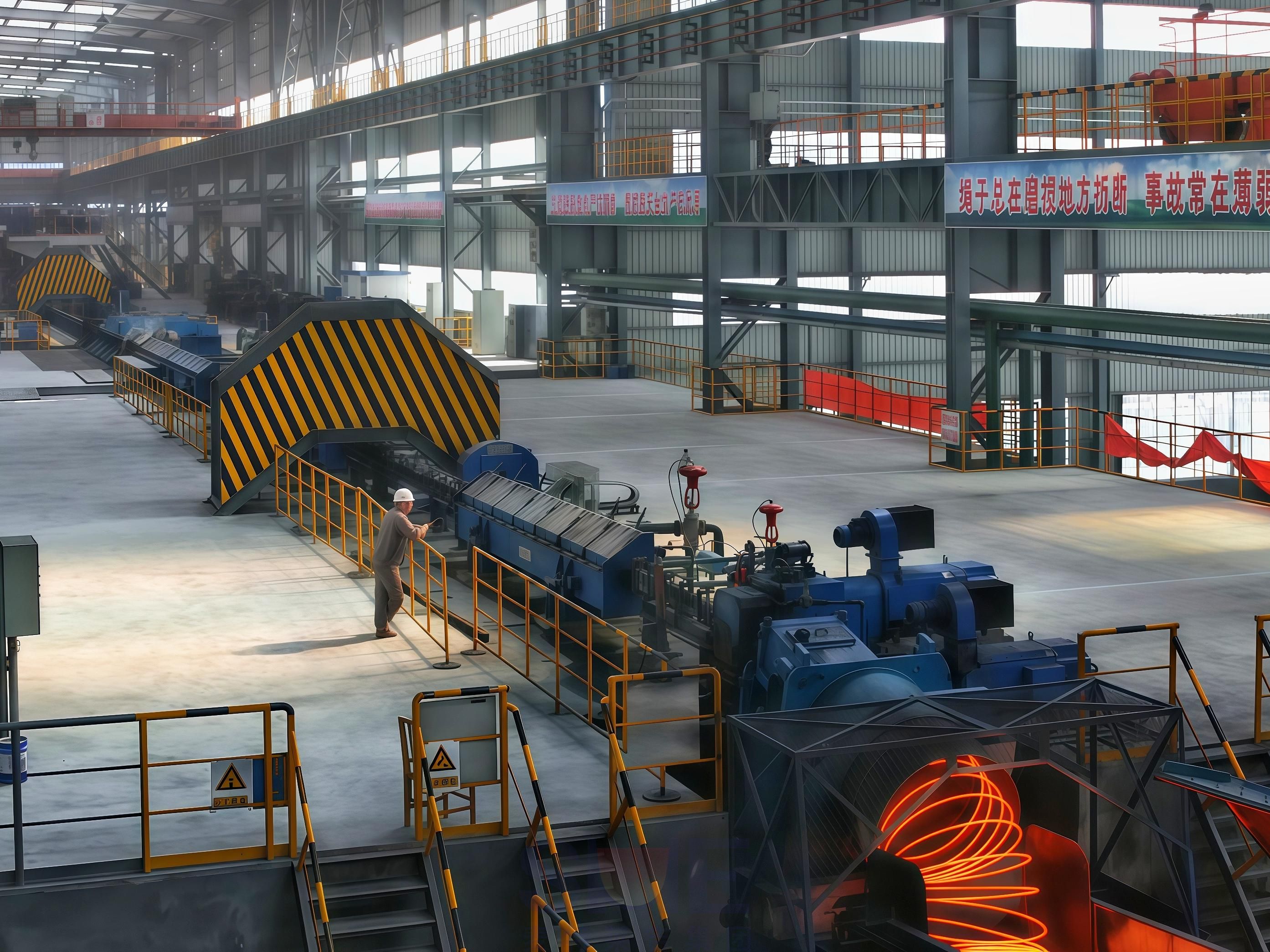

· Precision laying head to form uniform rings and stable coil geometry at high rolling speeds

· Stelmor conveyor cooling system for controlled air cooling and consistent metallurgical properties

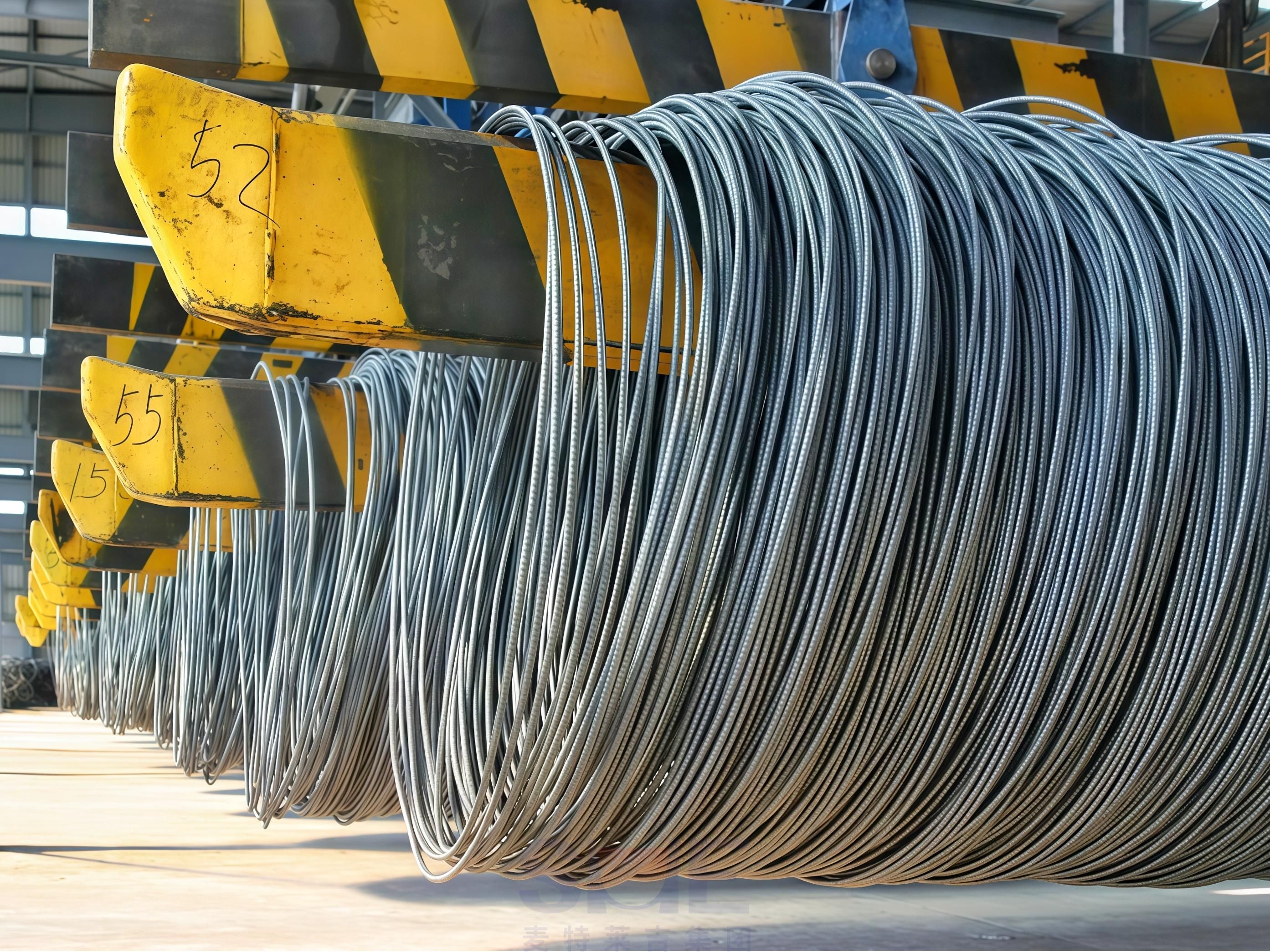

· Coil compactor, conveyor, and coil handling system for dense coil formation and safe downstream transport

· Shear systems including crop shear and emergency shear for head and tail cutting and mill protection

These systems form the backbone of a modern wire rod production line and directly influence rolling speed, dimensional accuracy, and final coil quality.

Typical Wire Rod Rolling Mill Configurations

Different steel plants adopt different wire rod mill layouts depending on product range, production capacity, and automation level. The most common configurations are described below.

1. Standard Wire Rod Rolling Mill for General Steel Grades

Process route:

Billet Reheating Furnace → Rolling Mill → Laying Head → Stelmor Cooling → Coil Handling

Key features:

· Suitable for low-carbon and medium-carbon wire rod production

· Covers common diameter range from 5.5 mm to 16 mm

· Stable operation with moderate investment cost

This configuration is widely used in steel plants supplying wire rod for construction wire, nails, and general engineering applications.

2. High-Speed Wire Rod Mill with No-Twist Finishing Block

Equipment combination:

Reheating Furnace → Roughing & Intermediate Stands → No-Twist Finishing Block → Water Cooling → Laying Head → Stelmor

Advantages:

· Higher rolling speed and increased productivity

· Improved dimensional tolerance and surface quality

· Reduced torsional stress, leading to better coil shape and fewer defects

This layout is suitable for large-scale production and mills targeting premium wire rod products.

3. Wire Rod Rolling Mill Integrated with Bar Production Line

Process route:

Reheating Furnace → Shared Roughing Stands → Split Rolling Line → Bar Line / Wire Rod Line

Suitable for:

· Plants requiring flexible production between bar and wire rod

· Facilities aiming to maximize equipment utilization and respond to market demand changes

This combined configuration allows upstream equipment such as reheating furnaces and roughing stands to be shared, reducing capital investment while maintaining production flexibility.

Why Choose SME Wire Rod Rolling Mills?

· Proven high‑speed rolling technology supporting speeds up to 120 m/s

· Optimized Stelmor controlled cooling for consistent mechanical properties and minimal scale formation

· Stable loop and tension control to maintain dimensional accuracy at ultra‑high speeds

· Flexible product mix covering construction, welding, and specialty wire rod grades

· Full turnkey supply, including reheating, rolling, cooling, and coil handling systems

A high‑performance wire rod rolling mill is essential for producing coils with tight tolerances, uniform properties, and excellent downstream processability. SME’s turnkey wire rod solutions enable steel producers to achieve high productivity, reliable product quality, and competitive production costs in demanding global.
